Disc Brakes Diagram

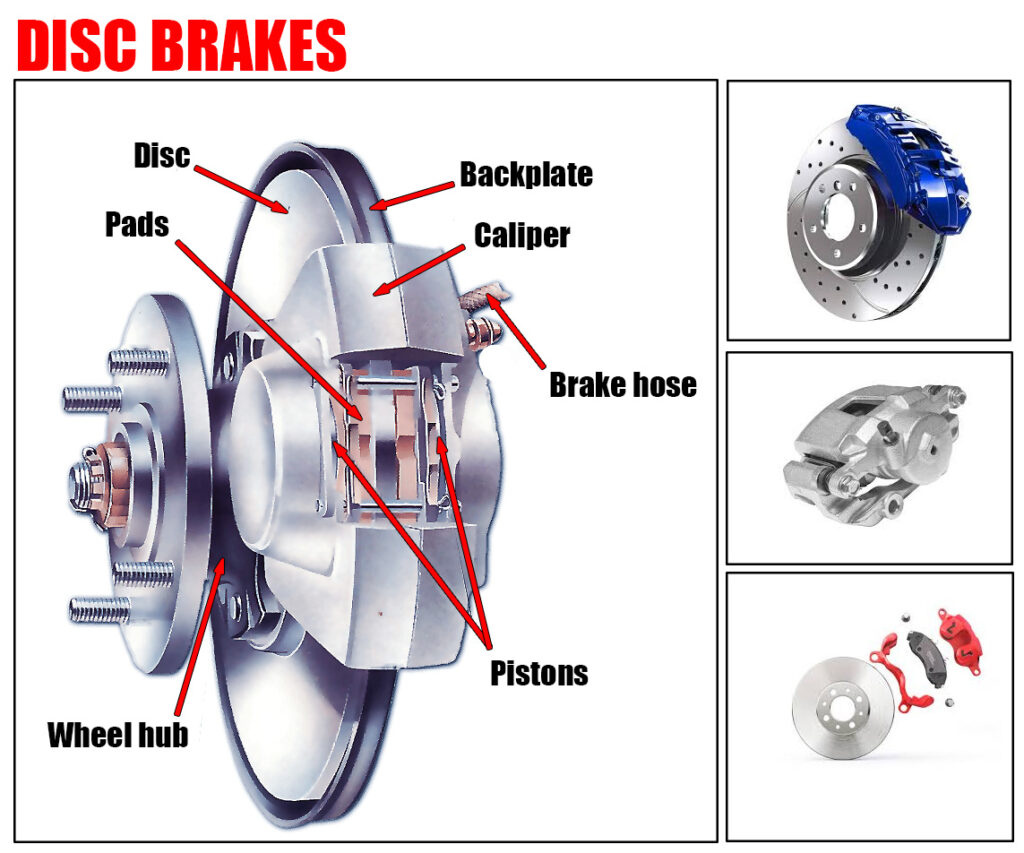

Disc brakes, an integral component of modern vehicle safety systems, offer efficient and reliable stopping power. At the heart of this system is a rotating disc, which is directly mounted to the wheel. The disc is flanked by a caliper, a sturdy device that houses small hydraulic pistons. These pistons are activated by pressure from the master cylinder, pressing against friction pads on either side of the disc.

The design of the pads allows them to cover a significant portion of the disc, ensuring a broad contact area for effective braking. Some systems feature multiple pairs of pistons or a single piston that operates both pads simultaneously, using different types of calipers—such as swinging or sliding calipers—to achieve this action. This setup is particularly common in dual-circuit brakes, which provide added safety.

One of the key advantages of disc brakes is the minimal movement required by the pistons to engage the pads. When the brake is applied, the fluid pressure forces the pads to clamp down on the disc. Upon release, the pads retract slightly, leaving a tiny gap between them and the disc, which ensures they do not drag. This design eliminates the need for return springs, simplifying the mechanism and reducing maintenance.

To accommodate wear, rubber sealing rings around the pistons allow them to gradually slide forward as the pads wear down, maintaining the optimal gap between the pads and the disc. This feature ensures consistent brake performance and negates the need for manual adjustments. Many modern vehicles also incorporate wear sensors within the pads. These sensors are connected to leads that, when exposed by wear and short-circuited by the metal disc, trigger a warning light on the instrument panel. This alerts the driver to replace the pads before they are fully worn, maintaining safety and performance.
