 Posted in Car Electrical Diagram

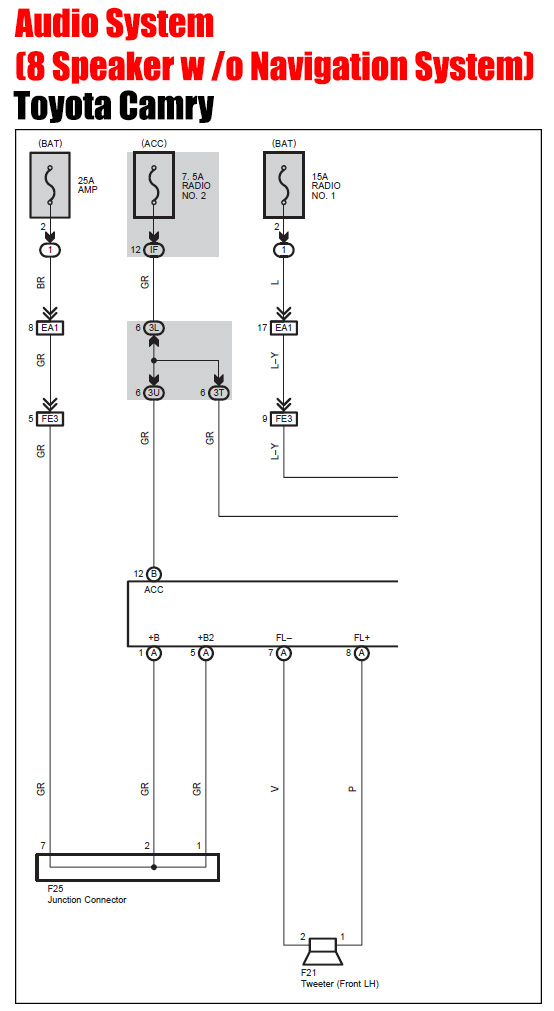

Audio System (8 Speaker w /o Navigation System)

 Alex Pavlenko

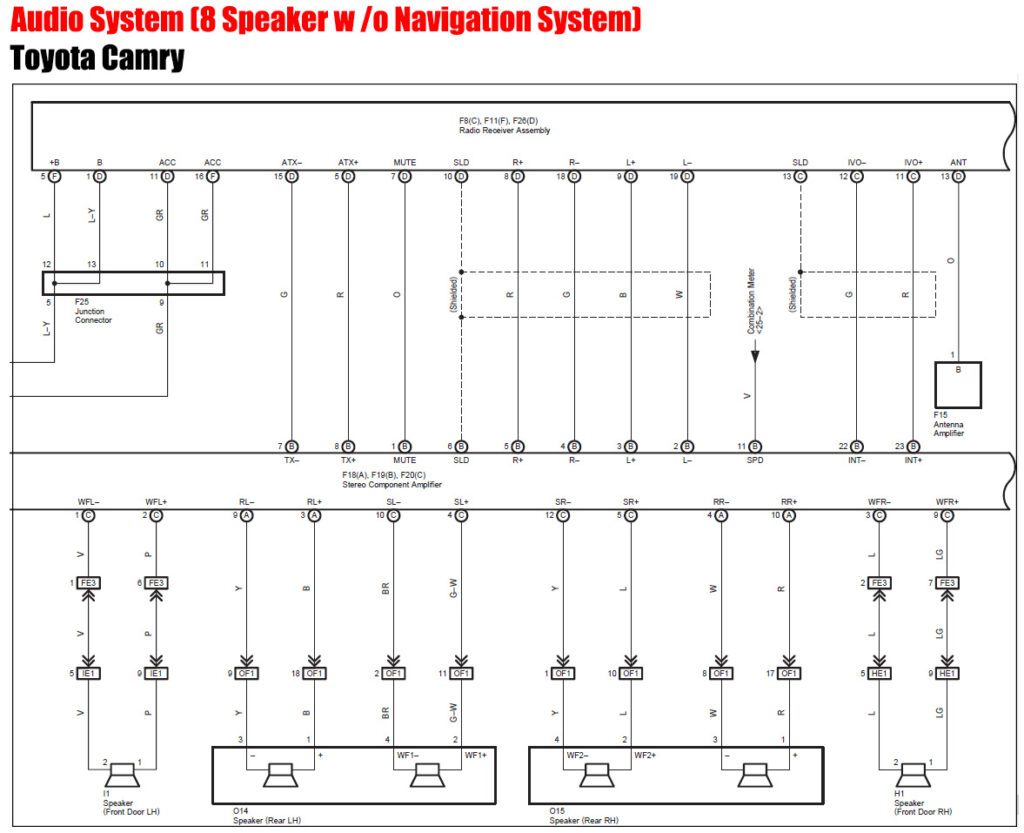

Audio System

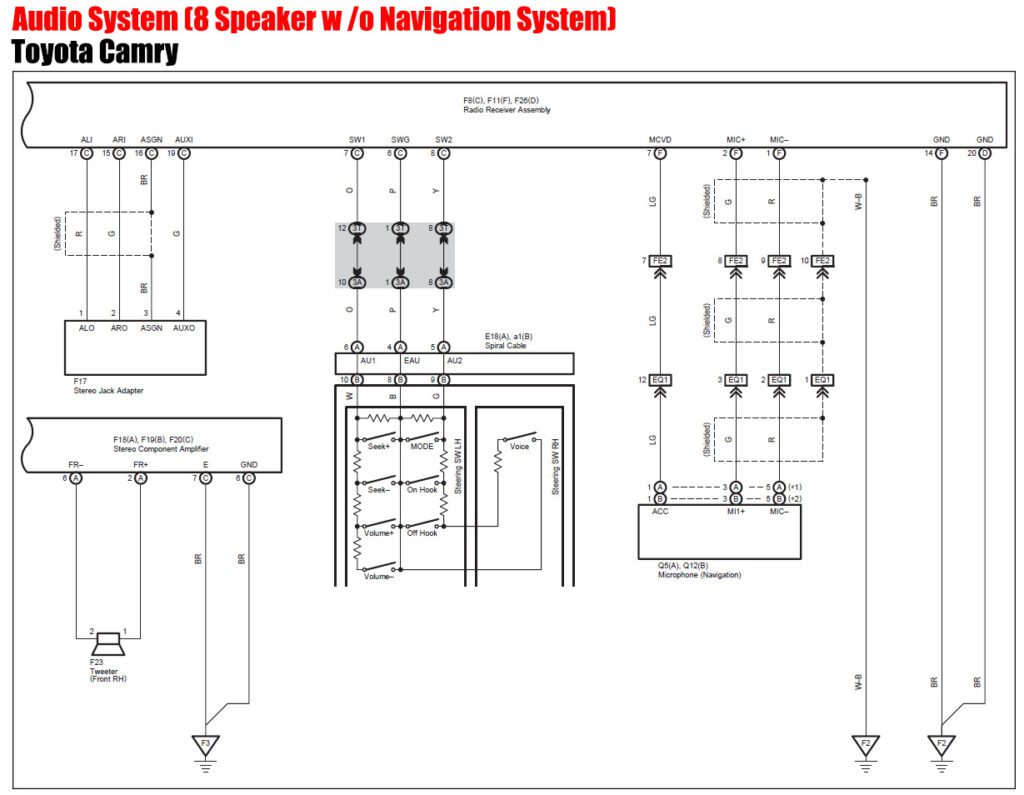

Audio System Wiring Diagram Toyota Camry

Author: Alex Pavlenko
