 Posted in Car Electrical Diagram

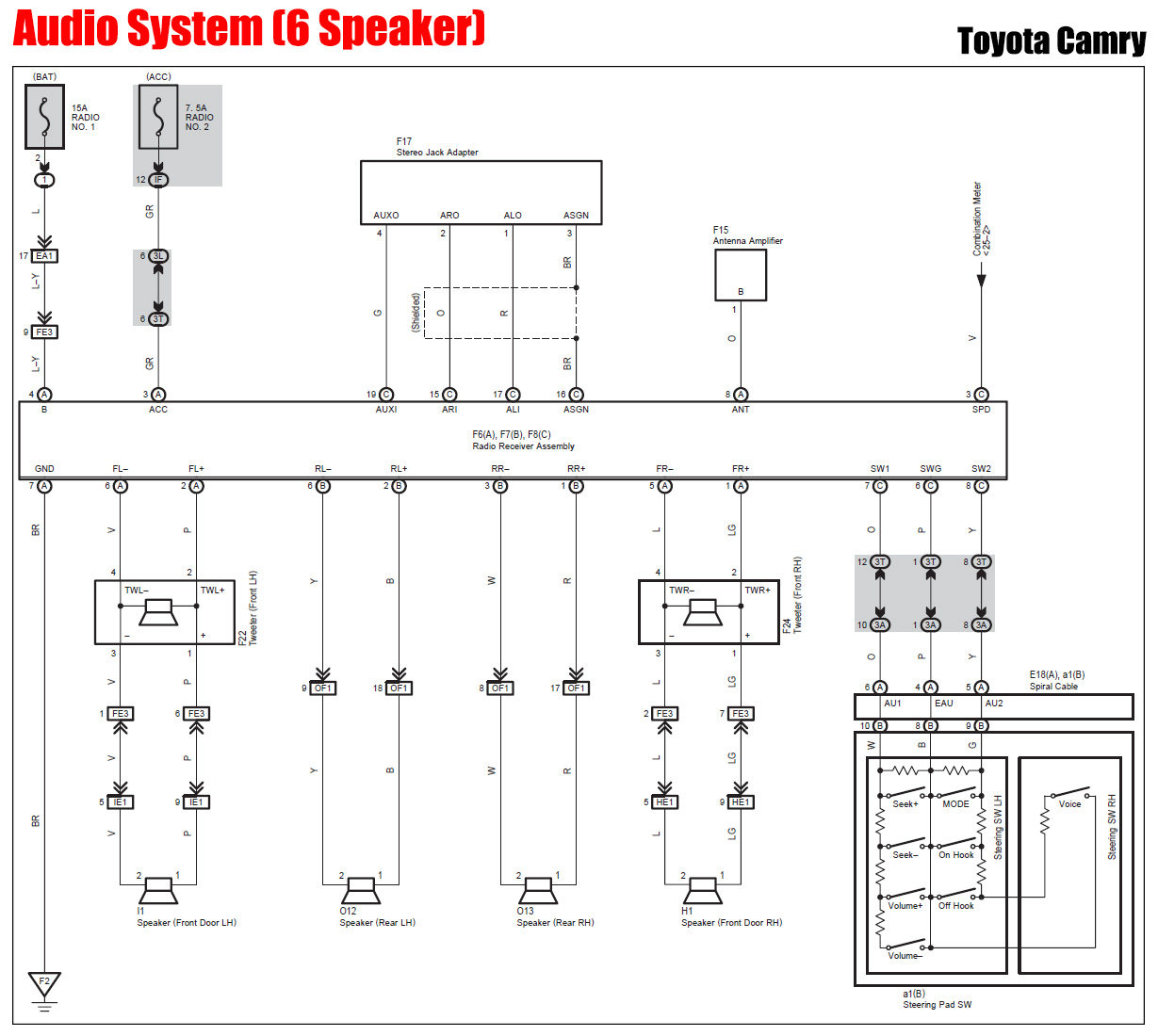

Audio System (6 Speaker) Toyota Camry

 Alex Pavlenko

Author: Alex Pavlenko

Навигация по записям

← Combination Meter
Audio System (8 Speaker w /o Navigation System) →
