Coil springs are essential components in vehicle suspensions, where they play a critical role in maintaining ride comfort and handling.

These springs, made from elastic steel, are coiled into a helical shape, allowing them to compress, extend, or rotate under load. This article delves into the design, function, and different types of coil springs, highlighting their importance in automotive and other mechanical applications.

The Structure of a Coil Spring

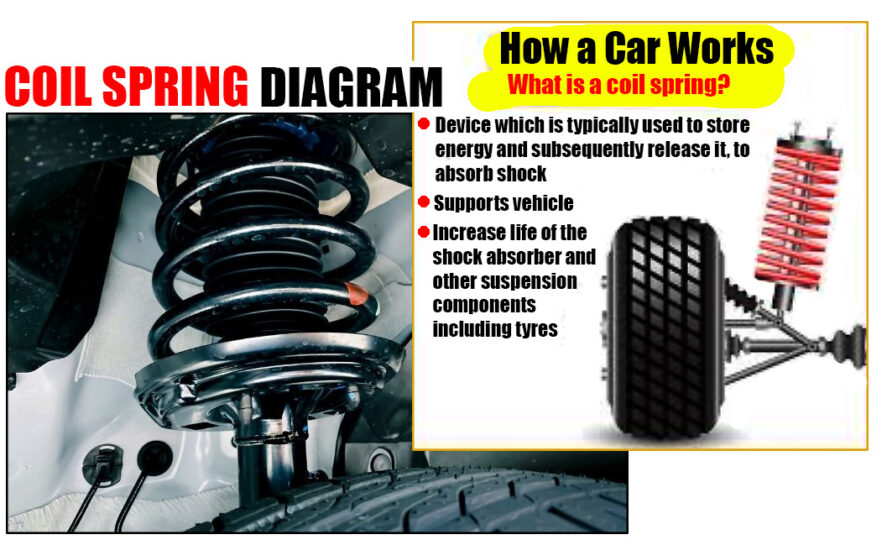

A coil spring is essentially a spiral of resilient steel rod, designed to absorb and store energy. The spring’s helical shape allows it to flex under pressure, whether that pressure comes from compression, extension, or twisting forces. When a load is applied, the spring deforms by either compressing or stretching, and once the load is removed, the spring returns to its original shape, thanks to its elastic properties.

In automotive applications, coil springs are positioned between the vehicle’s axle and the frame. As the wheels move up and down due to road irregularities, the coil spring compresses or extends to absorb the energy from these movements, ensuring that the car body remains reasonably level. This capability is maintaining vehicle stability and providing a smooth ride.

Types of Coil Springs

Coil springs can be categorized based on their design and the type of load they are intended to handle. The two main types of coil springs used in automotive suspensions are constant rate and variable rate coil springs, each serving specific purposes.

Constant Rate Coil Springs

Constant rate coil springs have a uniform pitch, meaning the spacing between the coils is consistent throughout the spring’s length. This design provides a consistent spring rate, or stiffness, regardless of how much the spring is compressed. These springs are ideal for applications where a steady, predictable response is required, making them common in standard vehicle suspensions.

Variable Rate Coil Springs

Variable rate coil springs, on the other hand, have a varying pitch, with some coils spaced closer together than others. This design allows the spring to offer a softer response when lightly loaded and a stiffer response as the load increases. This variability makes them suitable for vehicles that need to handle a wide range of loads, from light to heavy, without compromising ride comfort or stability.

The Four Primary Types of Coil Springs

Beyond the basic automotive applications, coil springs are classified into four primary types based on their specific functions: helical springs, compression springs, extension springs, and torsion springs. Each of these types is designed with particular applications in mind, ranging from general mechanical use to specialized industrial purposes.

Helical Springs

Helical springs are the most common type of coil spring, characterized by their simple spiral shape. They are typically used in compression or extension applications, depending on the direction in which they are intended to absorb force. Helical springs are found in various devices, from vehicle suspensions to industrial machinery.

Compression Springs

Compression springs are designed to operate under a compressive load. When the spring is compressed, it pushes back against the load, returning to its original shape once the load is removed. These springs are widely used in applications where a force is needed to push back against an object, such as in automotive suspensions, shock absorbers, and engine valves.

Extension Springs

Extension springs, as the name suggests, are designed to operate under a tensile (pulling) load. They are typically used in situations where components need to be pulled together. The coils of an extension spring are wound tightly together, and they extend as the load is applied. Common applications include garage door mechanisms and trampolines.

Torsion Springs

Torsion springs work by twisting rather than compressing or extending. When a load is applied to the spring, it twists along its axis, storing rotational energy. Torsion springs are used in applications where rotational force is needed, such as in clothespins, mouse traps, and vehicle suspensions that require rotational dampening.

Applications of Coil Springs in Automotive Suspension

In automotive suspensions, coil springs are vital for absorbing shocks and maintaining vehicle stability. By compressing and extending in response to road conditions, they help to smooth out the ride and keep the tires in contact with the road, which is essential for safe handling. The choice between constant rate and variable rate springs depends on the specific requirements of the vehicle, such as load capacity and desired ride comfort.

Coil springs are indispensable in a wide range of mechanical systems, providing the necessary flexibility and resilience to absorb shocks, handle loads, and maintain stability. Whether in automotive suspensions or other applications, understanding the different types of coil springs and their functions is crucial for selecting the right spring for any given task. Their simple yet effective design continues to play a critical role in the performance and reliability of countless devices and vehicles.
