Brake shoes are components in drum brake systems, and their condition directly impacts the vehicle’s braking efficiency. Regular inspection of brake shoe linings ensures safe driving and prevents brake failure. Here’s a detailed guide on how to check brake shoe wear and when to replace them.
1. What is Brake Shoe Wear?
Brake shoes are fitted with linings that press against the drum to create friction and slow down the vehicle. Over time, these linings wear down due to friction, and excessive wear can compromise braking performance. It is essential to monitor the thickness of these linings to ensure optimal brake function.

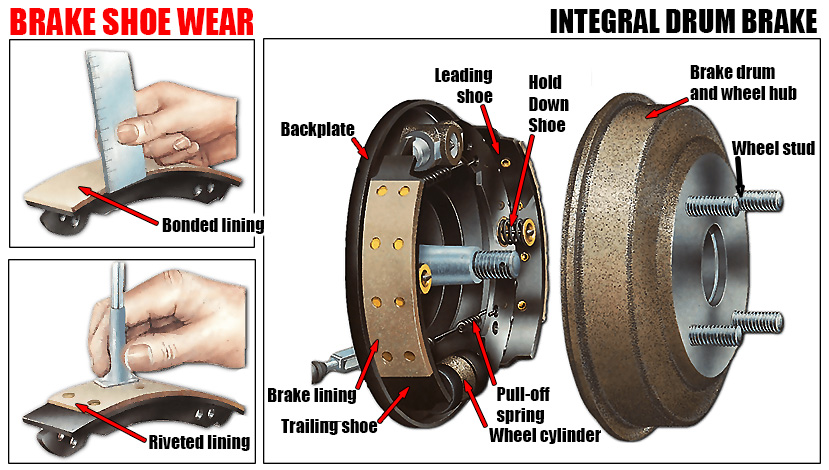

2. Checking Wear on Riveted Linings
For brake shoes with riveted linings, a tire tread-depth gauge is commonly used to measure wear. The rivet heads are visible, and the lining thickness above them must be monitored. The linings should be replaced once the thickness reaches 1.5mm above the rivet heads. This ensures there is enough material remaining to prevent the rivets from coming into contact with the drum, which could cause damage.
3. Checking Wear on Bonded Linings
Bonded linings are attached to the brake shoe without rivets, so a different method is used to check wear. A simple ruler can be used to measure the thickness of the lining from the shoe’s surface to the top of the lining. If the thickness of the bonded lining is reduced to 3mm, it’s time to replace the brake shoes. Driving with thinner linings can lead to brake failure or reduced braking performance.
4. Why Monitoring Brake Shoe Wear is Crucial
Neglecting to replace worn brake shoes can lead to serious consequences:
- Reduced Braking Power: Thin linings reduce the friction needed to stop the vehicle effectively.
- Damage to Brake Drum: When the lining wears down to the rivets or metal, the brake shoe can damage the drum, leading to costly repairs.
- Increased Stopping Distance: Worn brake shoes increase the stopping distance, especially in emergency situations.
Regularly checking the wear of brake shoe linings is an essential maintenance task. Whether your brake shoes have riveted or bonded linings, monitoring the wear and replacing the shoes when necessary ensures safe and efficient braking.
