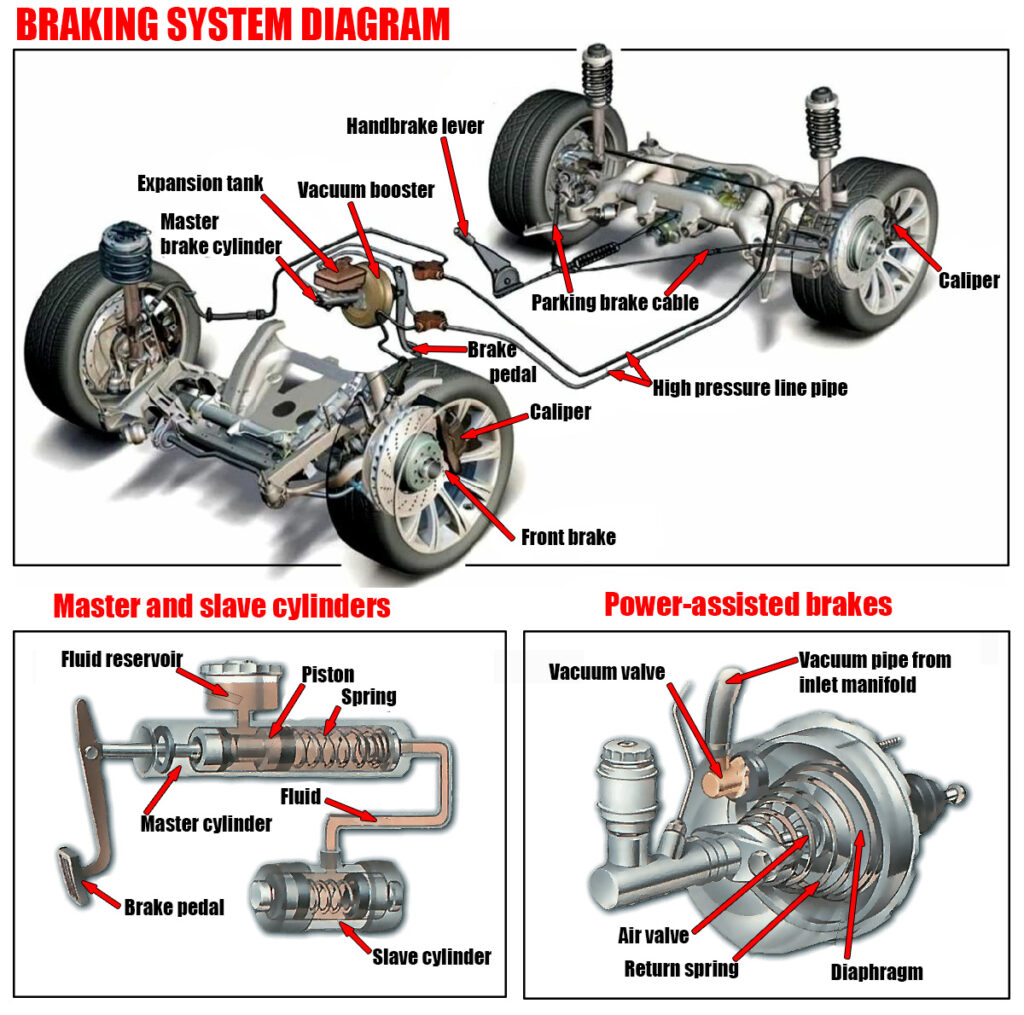

Braking System Diagram

The Braking System: A Comprehensive Overview

The braking system in most modern cars is a marvel of engineering, designed to ensure safety and control under a variety of driving conditions. It operates on all four wheels, utilizing a hydraulic system to apply force either through disc brakes, drum brakes, or a combination of both.

Types of Braking Systems: Disc vs. Drum

The braking system can be classified into two main types: disc brakes and drum brakes. In many vehicles, especially high-performance or expensive models, you’ll find disc brakes on all four wheels. Disc brakes are known for their superior stopping power and heat dissipation, making them more efficient in demanding situations. On the other hand, some older or smaller cars might still use an all-drum brake setup, which, while less efficient, is simpler and more cost-effective.

In most cars, the front brakes are more critical because braking shifts the vehicle’s weight forward, increasing the load on the front wheels. This is why many vehicles have disc brakes on the front wheels and drum brakes on the rear wheels. The front brakes handle most of the braking force, while the rear brakes assist in stabilizing the vehicle.

The Role of Hydraulic Brake Circuits

Central to the braking system is the hydraulic brake circuit, which relies on fluid-filled master and slave cylinders connected by pipes. When you press the brake pedal, it activates a piston in the master cylinder. This action forces brake fluid through the pipes, transmitting hydraulic pressure to the slave cylinders located at each wheel. The fluid pressure pushes the pistons in the slave cylinders outward, applying the brakes.

An interesting aspect of this hydraulic system is the difference in the surface area of the master and slave cylinders. The combined surface area of all the slave pistons is much larger than that of the master piston. As a result, the master piston needs to travel several inches to move the slave pistons just a fraction of an inch, allowing the brakes to exert significant force with relatively little effort from the driver.

Twin Hydraulic Circuits for Enhanced Safety

Most modern cars are equipped with twin hydraulic circuits, which add an extra layer of safety. These circuits involve two master cylinders arranged in tandem, so if one circuit fails, the other can still operate. The configuration of these circuits varies; one common setup has one circuit controlling the front brakes and the other controlling the rear brakes. In some designs, each circuit operates both front brakes and one of the rear brakes, or one circuit may handle all four brakes while the other is dedicated to the front brakes.

Preventing Rear-Wheel Lockup: Load-Sensitive Pressure-Limiting Valve

Under heavy braking, the weight of the car can shift so dramatically that the rear wheels lose contact with the road, leading to a potential lockup and skid. To prevent this, rear brakes are deliberately made less powerful than the front ones. Additionally, most cars are equipped with a load-sensitive pressure-limiting valve. This valve automatically reduces the hydraulic pressure to the rear brakes if it senses that the pressure has reached a level that might cause a lockup, thereby preventing further fluid movement to those brakes.

Advanced Braking Systems: Anti-Lock Brakes (ABS)

In high-end vehicles, anti-lock braking systems (ABS) provide an additional layer of safety. ABS continuously monitors the speed of each wheel and modulates the brake pressure to prevent the wheels from locking up during sudden stops. This rapid on-and-off application of the brakes allows the driver to maintain steering control, even during emergency braking.

Power-Assisted Brakes: Reducing Driver Effort

Many vehicles also feature power-assisted brakes, designed to reduce the amount of effort required by the driver to apply the brakes. The most common source of power for this assistance is the difference in pressure between the partial vacuum in the engine’s inlet manifold and the outside air. The servo unit that provides this assistance is connected to the inlet manifold by a pipe.

In a direct-acting servo system, the brake pedal pushes a rod that actuates the master cylinder piston. Simultaneously, the brake pedal operates a set of air valves connected to a large rubber diaphragm. When the brakes are off, the diaphragm is exposed to the manifold vacuum on both sides. Pressing the brake pedal closes a valve linking the diaphragm’s rear side to the manifold, allowing outside air to push the diaphragm forward, thus assisting the braking effort.

If the engine stops and the vacuum fails, the brakes will still function due to a mechanical link between the pedal and the master cylinder, though the driver will need to exert significantly more force on the pedal.

Indirect-Acting Servo Systems

Some vehicles employ an indirect-acting servo system, which is located in the hydraulic lines between the master cylinder and the brakes. This setup allows for more flexibility in the placement of the servo unit within the engine compartment. Like the direct-acting system, it uses manifold vacuum to provide a braking boost.

The Dual-Circuit Braking System

A typical dual-circuit braking system is designed so that each circuit controls both front wheels and one rear wheel. When the brake pedal is pressed, it forces fluid out of the master cylinder along the brake pipes to the slave cylinders at each wheel. The master cylinder has a reservoir to ensure it remains full, providing consistent hydraulic pressure throughout the system.

Author: Alex Pavlenko
