Anti-roll bars, also known as sway bars or stabilizer bars, are a critical component in modern automotive suspension systems. Their primary function is to prevent excessive body roll during cornering, thereby enhancing vehicle stability and handling. Understanding the design, functionality, and impact of anti-roll bars on vehicle dynamics is essential for both engineers and automotive enthusiasts.

Structural Composition

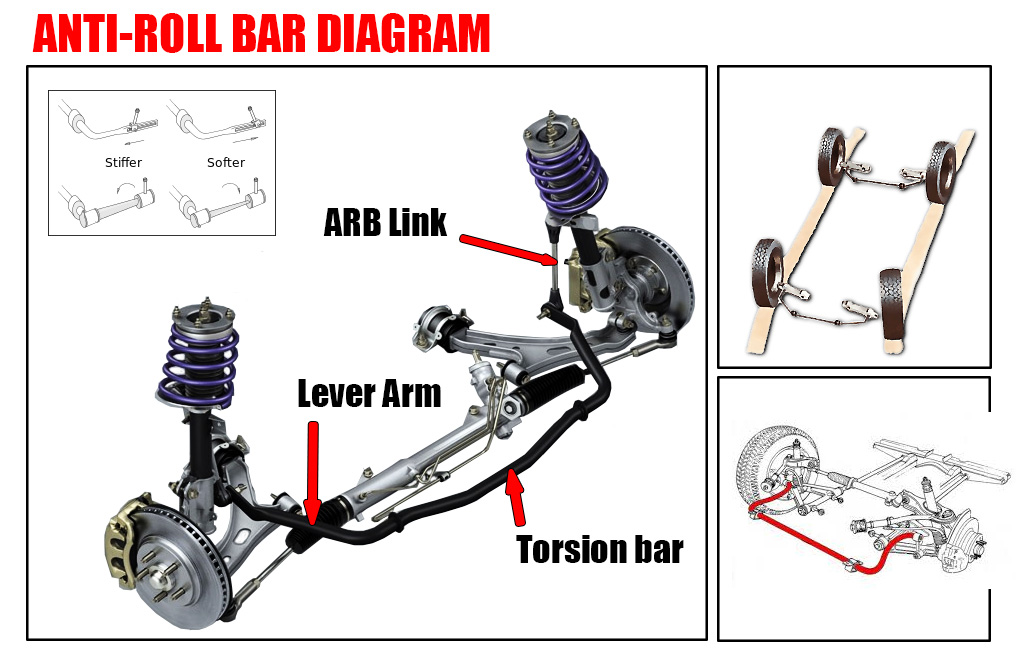

At its core, an anti-roll bar is a torsion bar, typically made of high-strength steel, that spans the width of the vehicle. The bar is mounted to the vehicle’s frame via two pivotal points, usually located near the wheels on opposite sides of the car. These pivots allow the bar to twist, but only to a limited extent, which is crucial for controlling body roll.

Outside of these pivots, the bar bends backward, with each end attached to a wheel assembly. The connection to the wheels is typically made through flexible rubber bushes or links, which provide a degree of compliance while still transmitting forces effectively.

Functional Dynamics

The primary function of the anti-roll bar is to counteract the tendency of a vehicle to lean or roll when navigating corners. During cornering, centrifugal force causes the vehicle’s body to tilt away from the turn, resulting in uneven weight distribution across the wheels. This tilting can compromise traction and stability, making the vehicle more prone to understeer or oversteer.

When one wheel encounters a bump or rises due to cornering forces, it causes the attached end of the anti-roll bar to rise as well. Due to the bar’s design, this upward motion is transferred through the torsion bar to the opposite end, which pulls up the other wheel. This action helps to keep the vehicle level by distributing the forces more evenly between the wheels on both sides of the vehicle.

In essence, the anti-roll bar acts as a mechanical lever that resists body roll by increasing the roll stiffness of the suspension system. This resistance is not absolute; the bar is designed to allow some degree of roll, ensuring that the vehicle can still absorb road irregularities without becoming overly rigid.

Application and Placement

Anti-roll bars are most commonly found at the front of the vehicle, where they play a crucial role in maintaining front-end stability during cornering. However, they are also frequently used at the rear, particularly in performance vehicles where balanced handling is a priority. In some cases, vehicles are equipped with anti-roll bars at both the front and rear, providing a more comprehensive approach to roll control.

The effectiveness of an anti-roll bar depends on several factors, including its diameter, material composition, and mounting points. A thicker bar or one made from a stiffer material will offer greater resistance to roll, but may also reduce ride comfort. Conversely, a thinner or more flexible bar will allow more body roll, which can be beneficial in certain driving conditions, such as off-road or rough terrain.

Anti-roll bars are a fundamental component in the suspension system of any vehicle, offering a balance between comfort and performance. By controlling body roll, they improve handling and safety, allowing the vehicle to remain stable and predictable during dynamic maneuvers. Understanding the mechanics and application of anti-roll bars is essential for anyone involved in automotive design, engineering, or performance tuning.

This technical overview highlights the importance of anti-roll bars in maintaining vehicle stability, emphasizing their role in modern suspension systems. Whether installed at the front, rear, or both, anti-roll bars continue to be a vital element in the pursuit of driving excellence.
