The wishbone suspension system is a crucial part of a car’s front suspension, playing a significant role in how the vehicle handles and rides. Here’s a closer look at what the double wishbone suspension is and how it works.

What Is a Double Wishbone Suspension?

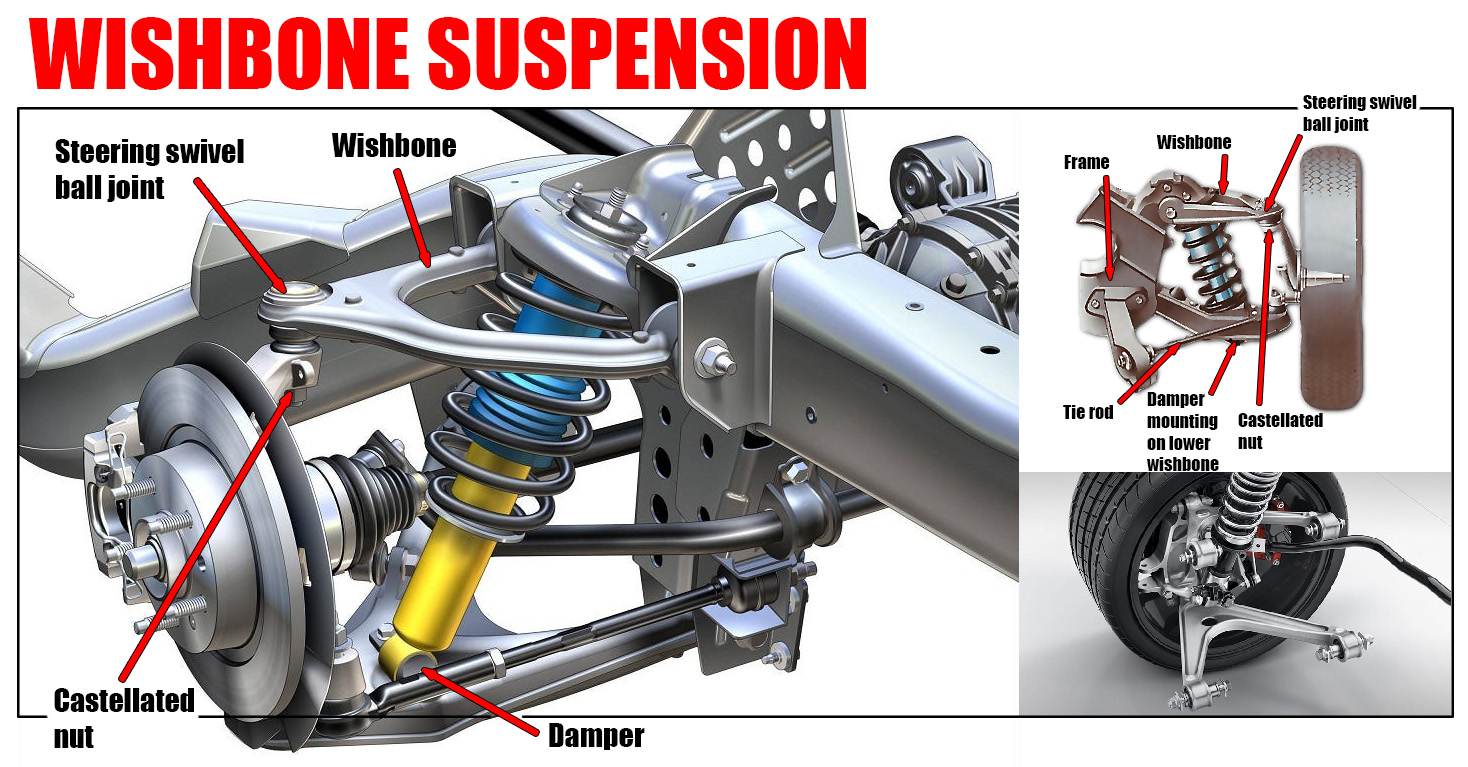

The double wishbone suspension is mostly used in the front of vehicles. As the name implies, it features two wishbones—one on top of the other. These wishbones work together to keep the wheel upright as it moves up and down. This setup is essential because it helps the tires stay in proper contact with the road, which is key for smooth steering and better control, especially when driving through turns or over bumps.

How Do the Wishbones Connect?

Each wishbone connects to the top and bottom of a part called the steering swivel member. This component is what allows the wheels to turn when you steer. The upper and lower wishbones ensure that the wheel stays stable and properly aligned, even when it’s bouncing up and down due to uneven road surfaces.

Where the Wishbones Attach to the Frame

The inner ends of the wishbones stretch inward and attach to the car’s frame at pivot points. These pivot points let the wishbones move smoothly, absorbing shocks from the road and keeping the wheels aligned. This setup is crucial for maintaining a comfortable ride and ensuring the car stays steady and under control.

The Function of the Tie Rod

In addition to the wishbones, there’s a tie rod, or steadying bar, that connects the car’s frame to the lower wishbone. The tie rod is important because it helps stabilize the lower wishbone, preventing too much side-to-side movement. This keeps the suspension geometry in check, which is essential for precise handling and responsive steering.

Wrapping It Up

The double wishbone suspension system is a sophisticated design that’s all about improving your driving experience. By keeping the wheels stable and upright, it helps your car handle better and provides a smoother, more comfortable ride. Understanding how this suspension system works gives you a better appreciation for the engineering that goes into making your car perform at its best.
