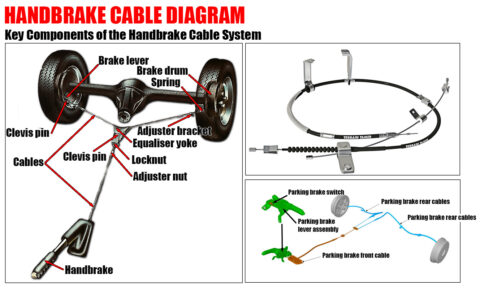

Handbrake Cable Diagram

The handbrake, also known as the parking brake, is a crucial safety mechanism in any vehicle, providing a secure way to prevent the car from moving when parked. Although the layout of the handbrake cable system may vary slightly between different car models, the fundamental components and principles remain largely the same. In this article, … Читать далее

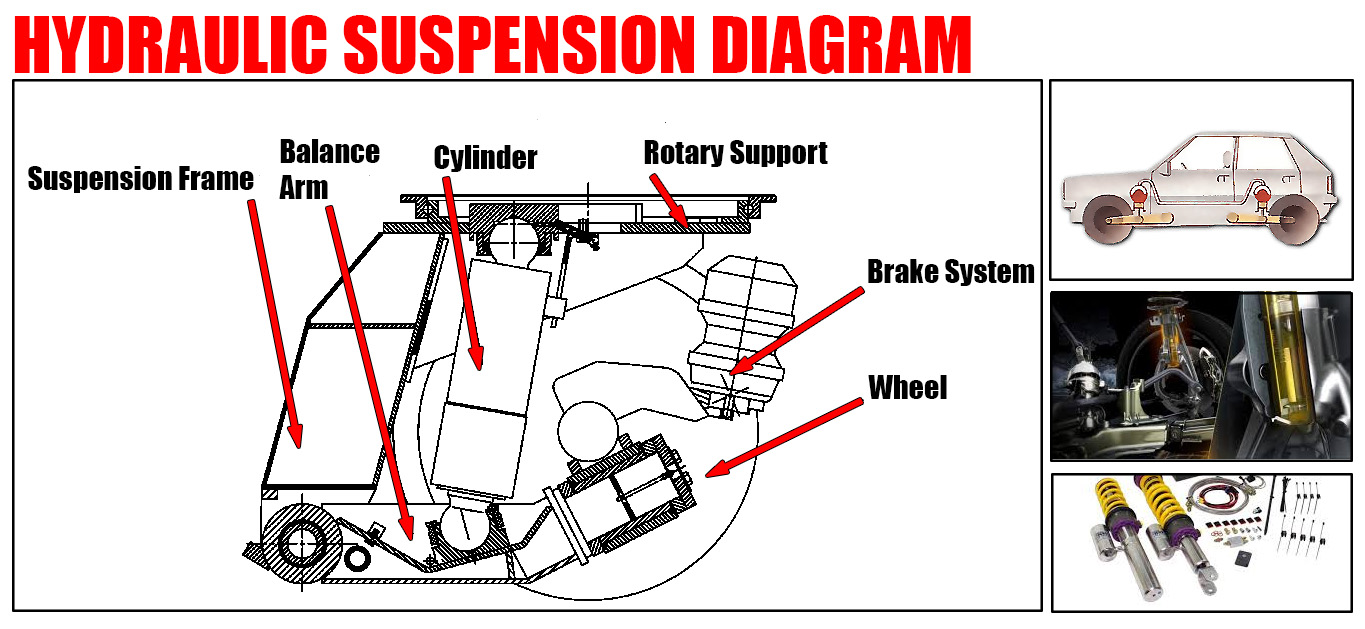

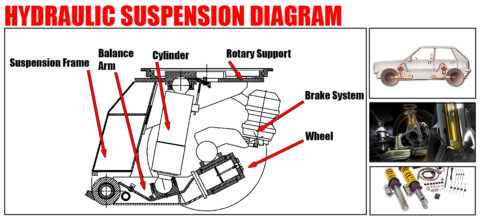

Hydraulic Suspension Diagram

Hydraulic suspension is an advanced suspension system that enhances vehicle stability and ride comfort by using fluid dynamics to manage the response of the wheels to road conditions. This system integrates rubber springs with a hydraulic damper system, creating a sophisticated mechanism that links the front and rear wheels on the same side of the … Читать далее

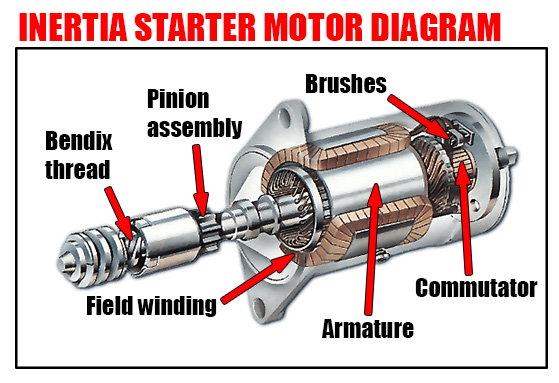

Inertia Starter Motor Diagram

The inertia starter motor is component enabling the initial rotation necessary to start the engine. This system relies on the principles of inertia and mechanical engagement to transfer rotational motion from the starter motor to the engine’s flywheel. In this article, we will explore the structure, function, and mechanics of the inertia starter motor, focusing … Читать далее

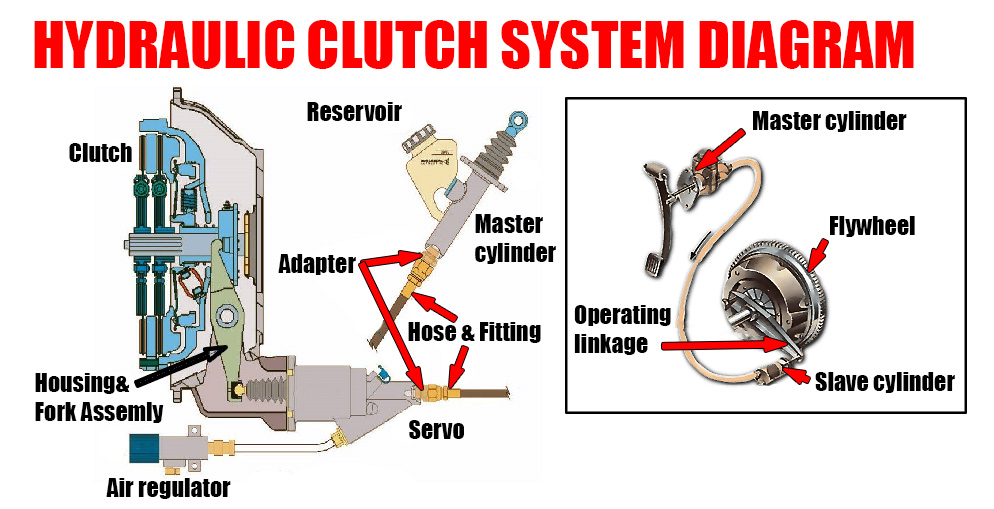

Hydraulic Clutch System Diagram

The hydraulic clutch system is a mechanism that plays a crucial role in the operation of modern vehicles. By understanding its components and working principles, we can appreciate the efficiency and reliability it brings to automotive technology. This article delves into the intricate workings of the hydraulic clutch system, providing a detailed analysis of its … Читать далее

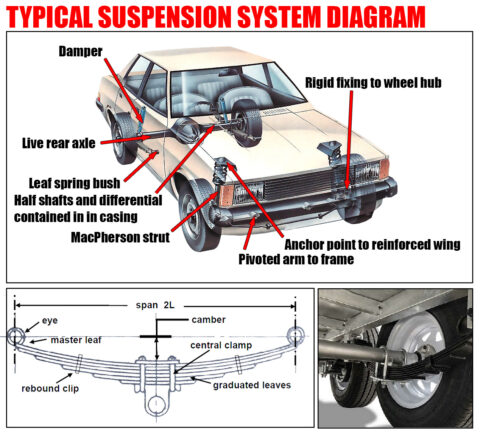

Suspension System Diagram

Suspension Systems A typical suspension system in a rear-wheel-drive vehicle showcases the intricate balance between maintaining stability and providing comfort. The system often includes a live rear axle, where the axle assembly contains both the drive shafts, commonly referred to as half shafts, and the differential gears. This configuration is especially prevalent in rear-wheel-drive cars, … Читать далее

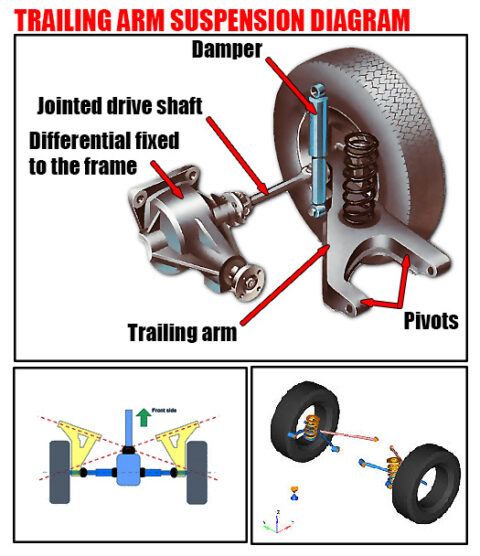

Trailing-Arm Suspension Diagram

A trailing-arm suspension is a type of automotive suspension system predominantly used in rear-wheel-drive vehicles. This system is particularly favored for its ability to maintain wheel alignment and stability, even under challenging driving conditions. To understand the mechanics and advantages of this suspension type, it is essential to explore its structure, components, and functionality. Structural … Читать далее

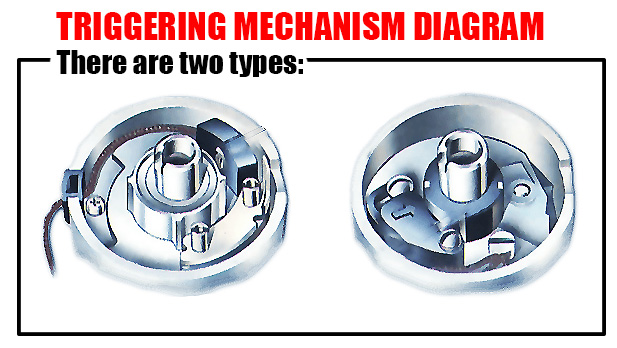

Triggering Mechanism

Triggering Mechanism in Electronic Systems In modern electronic systems, precise timing and control are crucial for optimal performance, and this is where a triggering mechanism plays a key role. The mechanism typically involves a rotor and a triggerhead, working together to generate and regulate the necessary signals. How the Triggering Mechanism Works At the core … Читать далее

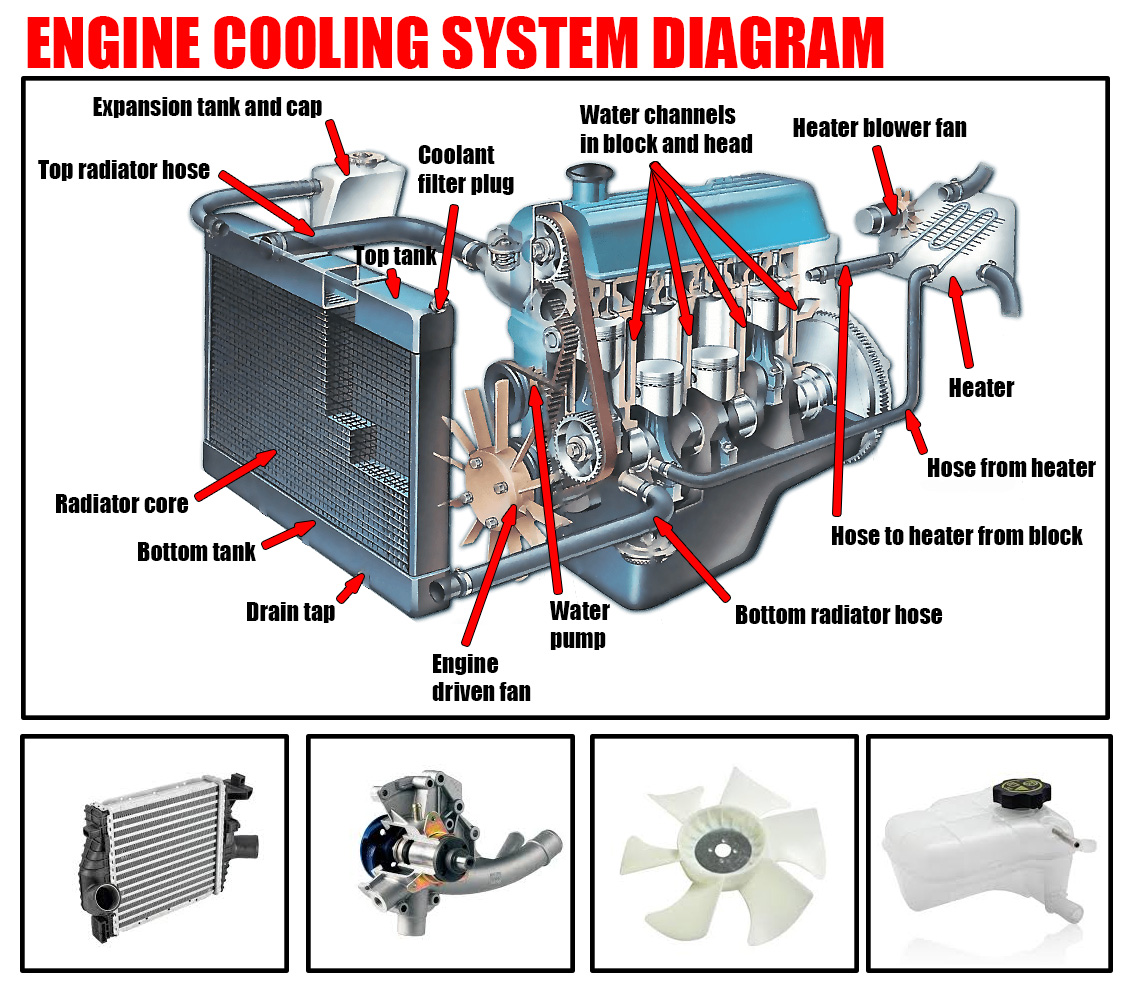

Engine Cooling System Diagram

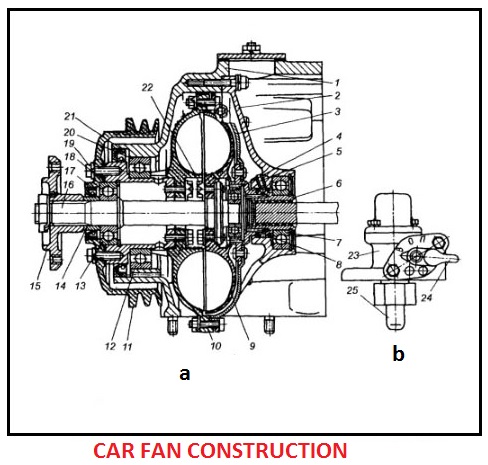

The engine cooling system plays a crucial role in maintaining a car engine’s operational efficiency and longevity. As a car engine runs, it generates significant heat, which needs to be continuously managed to prevent engine damage. The cooling system achieves this by circulating a coolant liquid, typically a mixture of water and antifreeze, through dedicated … Читать далее

Alternator Diagram

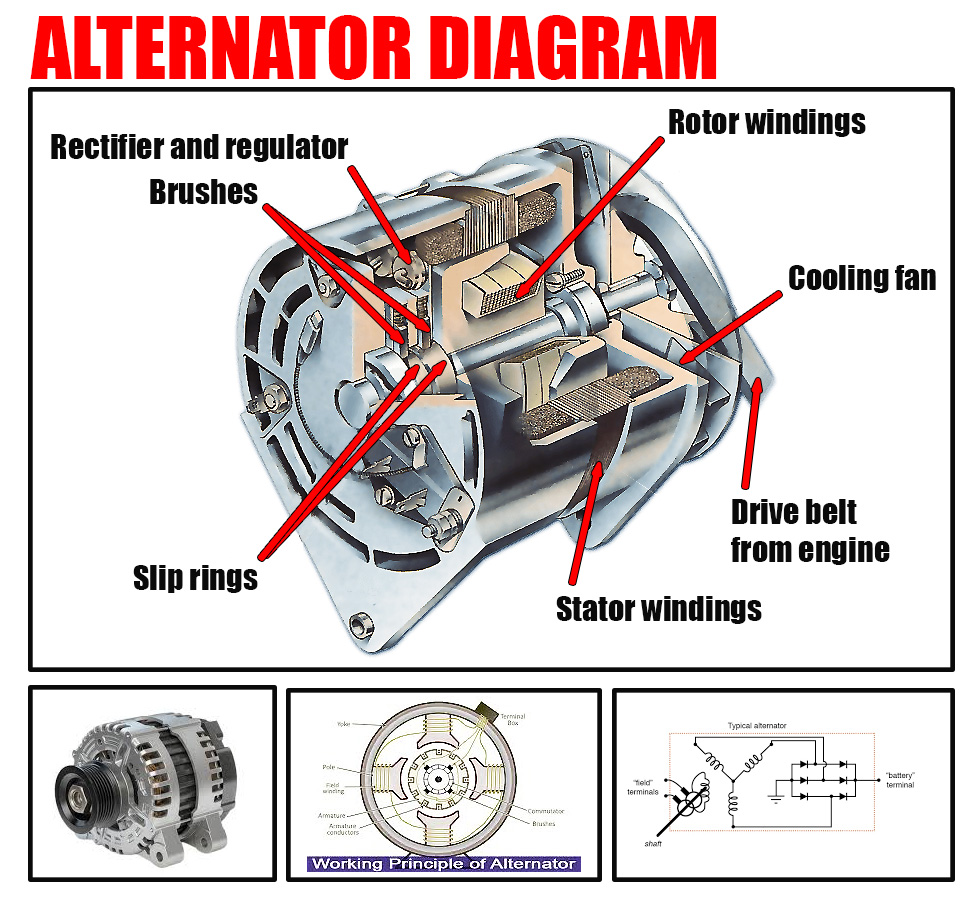

Alternator System A car relies heavily on electricity to power the ignition system and various electrical components. If all the energy came solely from a conventional battery, it would quickly deplete. To prevent this, vehicles are equipped with a rechargeable battery and a charging system that ensures the battery remains sufficiently charged. How the Battery … Читать далее

Constant-mesh Gearbox Diagram

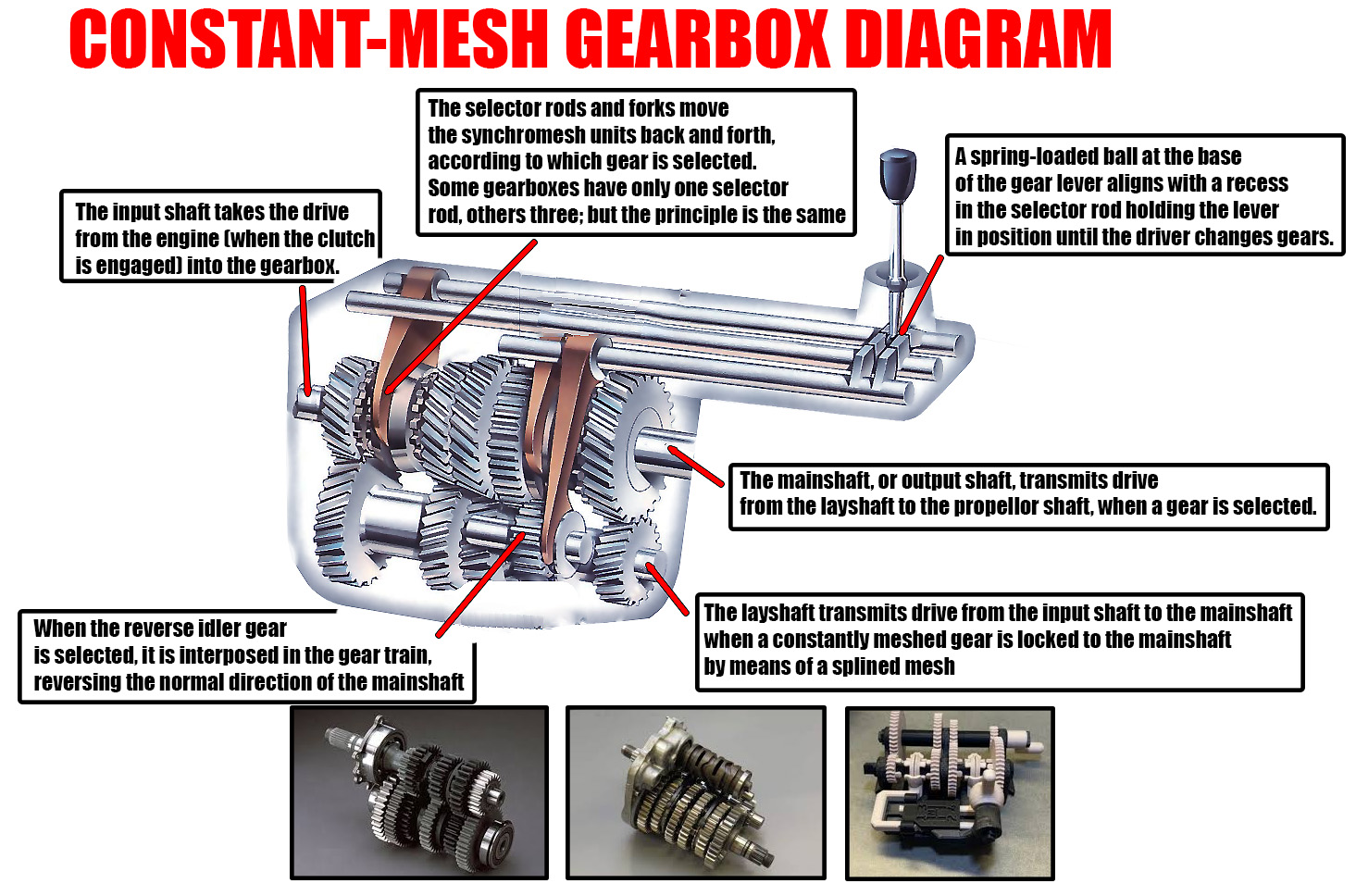

A constant-mesh gearbox is designed with gears that are always engaged, but the selection of the gears is managed through a sophisticated system of rods and levers connected to the gear lever. When a driver chooses a gear, the corresponding gear pair is locked to the shaft, allowing power to be transmitted through the input … Читать далее

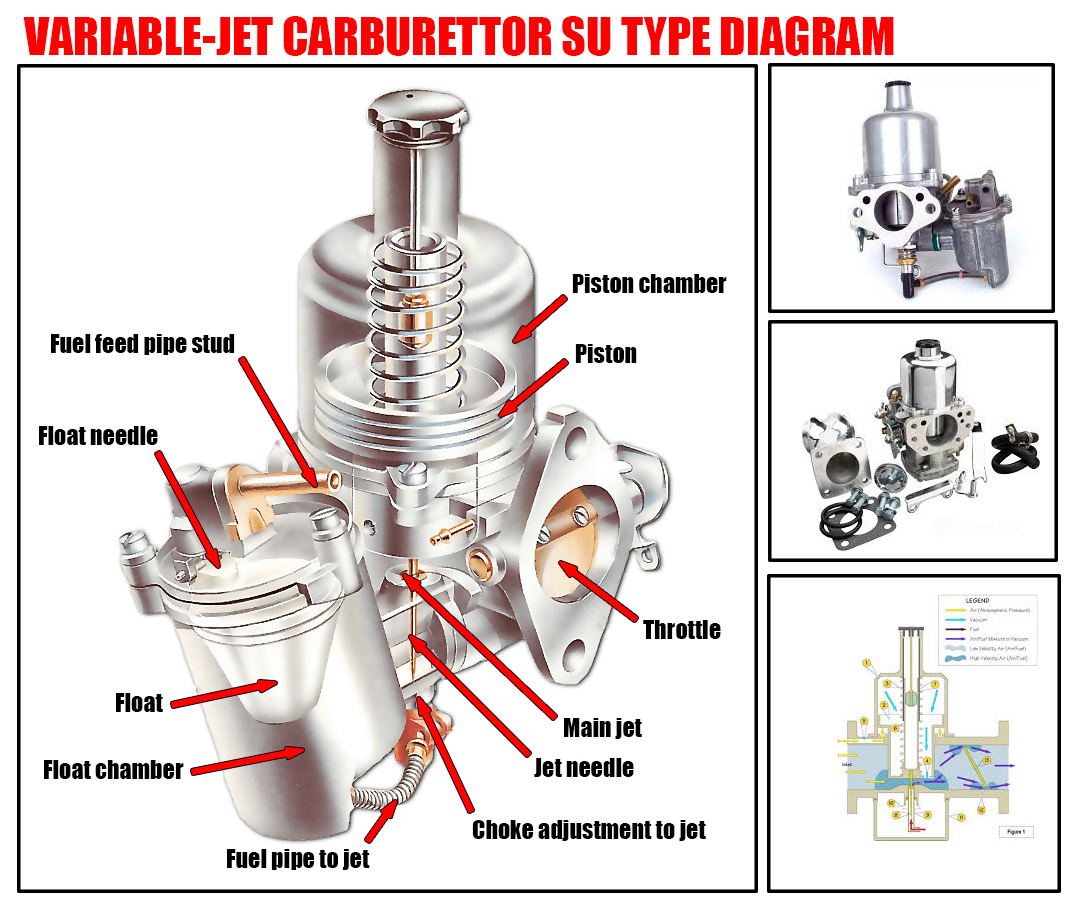

SU Carburettor Diagram

SU Carburettor Functionality An SU carburettor is integral in managing the air-fuel mixture that an engine needs for optimal performance. It achieves this by spraying fuel through a jet into a moving airstream, which aids in the vaporization of the fuel to create an explosive mix. The speed of the engine dictates the amount of … Читать далее

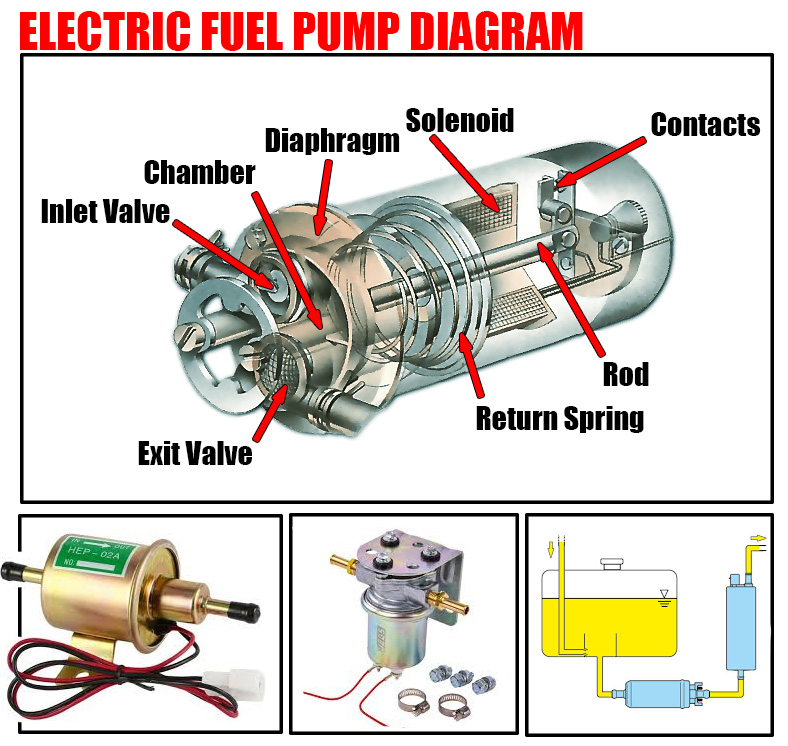

Electric Fuel Pump Diagram

Electric Fuel Pumps An electric fuel pump features a similar diaphragm-and-valve mechanism as its mechanical counterparts, but it uses a solenoid—a type of electromagnetic switch—to move the diaphragm instead of the camshaft. Operation of the Solenoid Mechanism The solenoid functions by attracting an iron rod that draws the diaphragm downwards, thereby creating a vacuum that … Читать далее

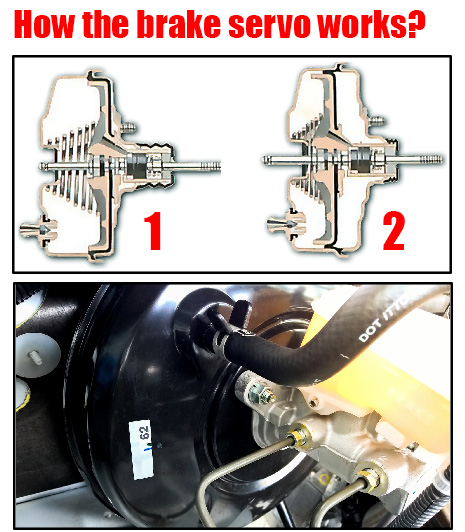

How the brake servo works

The brake servo, also known as the brake booster, plays a pivotal role in reducing the physical effort needed to apply the vehicle’s brakes. In its resting state, or when the brakes are not engaged, both sides of the servo’s diaphragm are subjected to the vacuum pressure created by the engine’s inlet manifold. This equilibrium … Читать далее

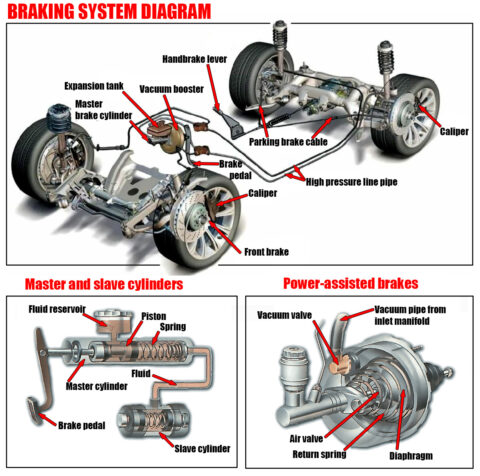

Braking System Diagram

The Braking System: A Comprehensive Overview The braking system in most modern cars is a marvel of engineering, designed to ensure safety and control under a variety of driving conditions. It operates on all four wheels, utilizing a hydraulic system to apply force either through disc brakes, drum brakes, or a combination of both. Types … Читать далее

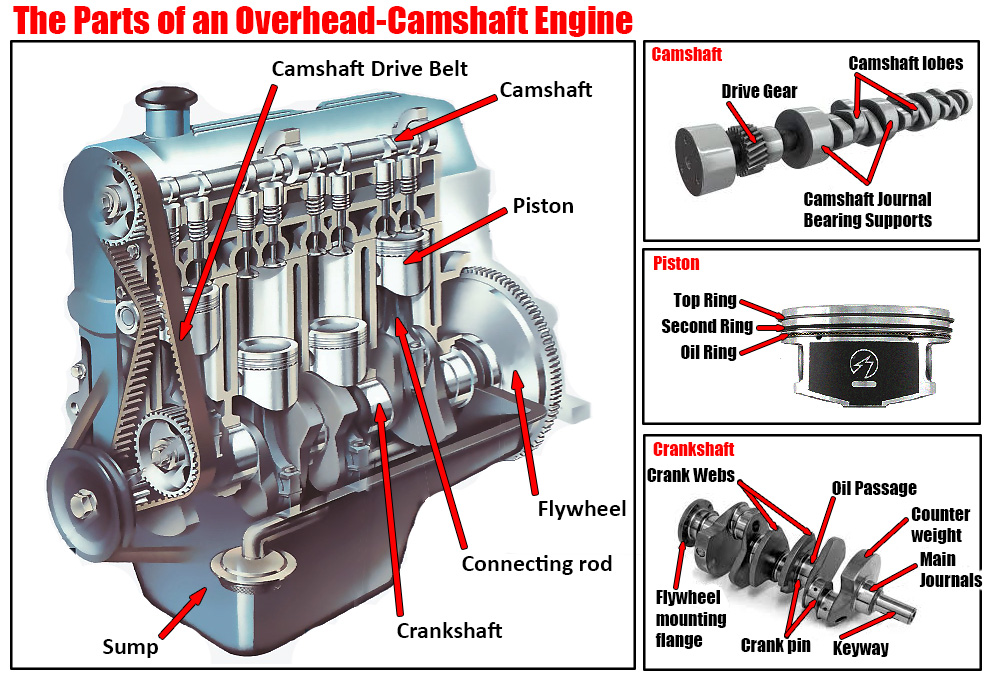

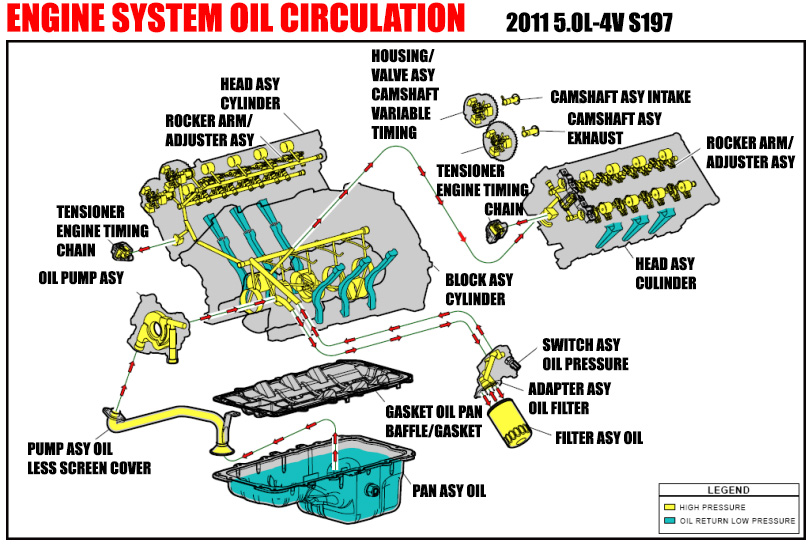

The parts of an overhead-camshaft engine

The Camshaft: Precision in Valve Operation The overhead-camshaft engine, commonly referred to as the OHC engine, represents a significant evolution in internal combustion technology, offering precision and efficiency in engine performance. At the heart of this system is the camshaft, featuring pear-shaped lobes. These lobes play a critical role by actuating the valves—typically one inlet … Читать далее

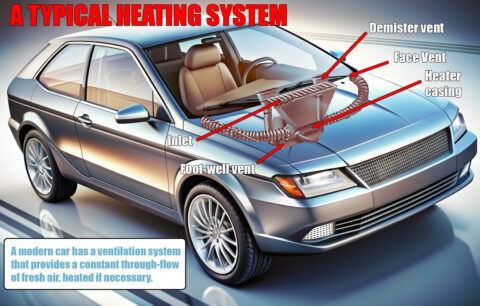

Typical Heating System Diagram

Airflow Management Airflow in modern vehicles is carefully managed to ensure a comfortable cabin environment. Fresh air enters through a large duct located at the front of the car, strategically placed in a high-pressure zone so that as the car moves, air is naturally forced inside. This air can be directed to the heater, where … Читать далее

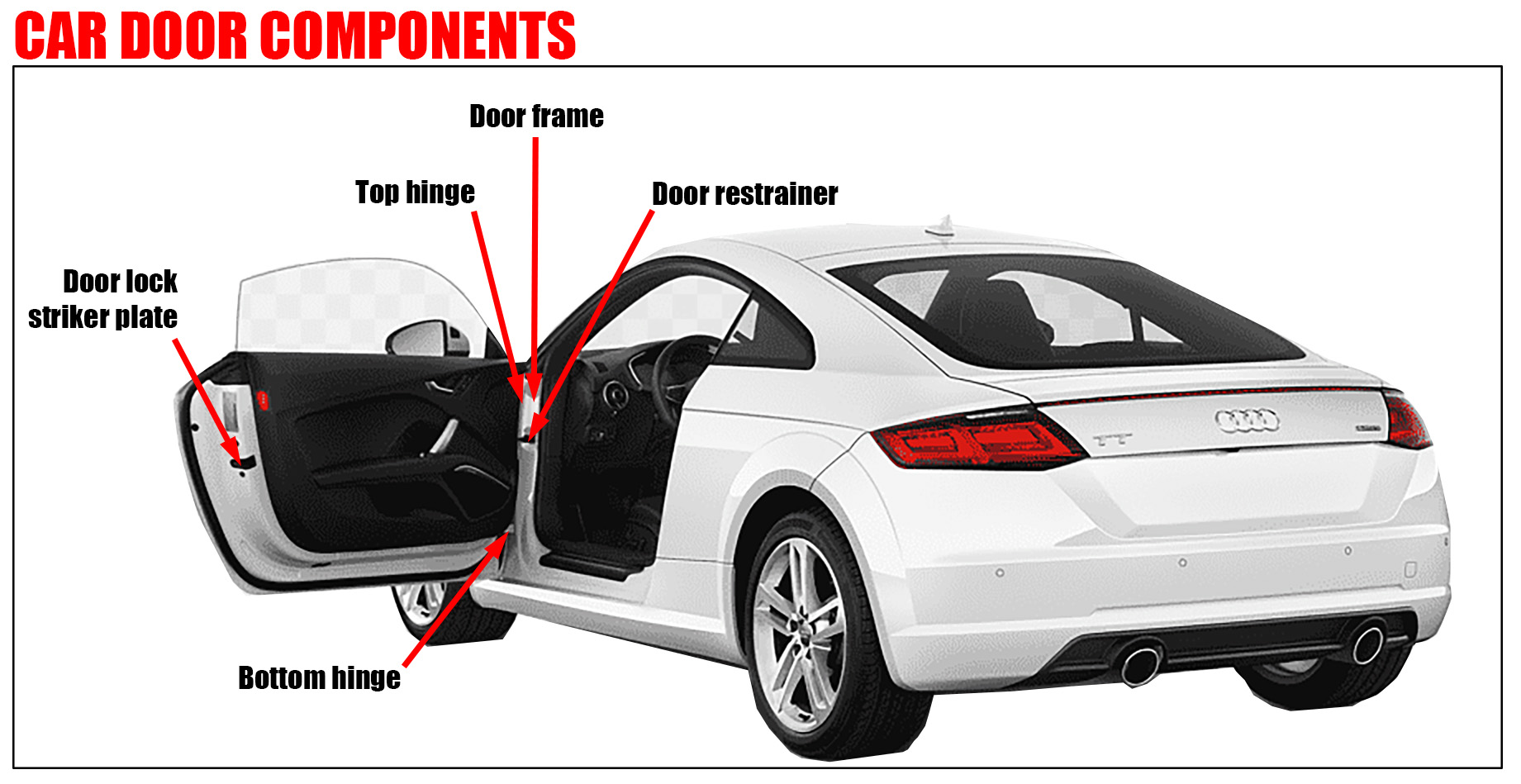

Car Door Components

When examining the construction of a car door, it becomes evident that it is a complex piece of engineering designed to ensure safety, convenience, and durability. Let’s delve into the critical elements that make up this essential part of a vehicle: the door lock striker plate, bottom hinge, top hinge, door frame, and door restrainer. … Читать далее

Driving the 2025 Mercedes-AMG GT 63 S E Performance: A New Benchmark in Hybrid Performance

Unmatched Hybrid Power The 2025 Mercedes-AMG GT 63 S E Performance redefines performance in the luxury coupe segment, blending formidable power with cutting-edge hybrid technology. At its core, the GT 63 S E Performance is powered by a robust 4.0-liter twin-turbocharged V8 engine, delivering an impressive 603 horsepower and 627 lb-ft of torque. This engine … Читать далее

How to Buy a Used Car

How to Buy a Used Car When purchasing a new vehicle is too costly or you want to avoid substantial depreciation, the used-car market is a viable option. Pre-owned cars, trucks, and SUVs offer several benefits: they are generally more affordable, some come with warranties, and many provide exactly what you’re looking for. Research is … Читать далее

Ford B-MAX Acceptable Oil Types 2018

B-Max 2018 B-Max 1.0 EcoBoost Acceptable Oil Types5W/20Oil Capacity4,6 litre (Service fill)5,05 litre (Initial fill)Filter capacity 0,2 litre B-Max 1.4 Acceptable Oil Types5W/205W/30Oil StatsEngine Code: SPJD/SPJEChange Period: 20000 km/ 12 monthsOil Capacity4,1 litre (Service fill)4,4-4,6 litre (Initial fill)Filter capacity 0,3 litre B-Max 1.4 Flex Fuel Acceptable Oil Types5W/205W/30Oil StatsEngine Code: RTJC / RTJEChange Period: 20000 … Читать далее

Spark Plug Wire Diagram Dodge

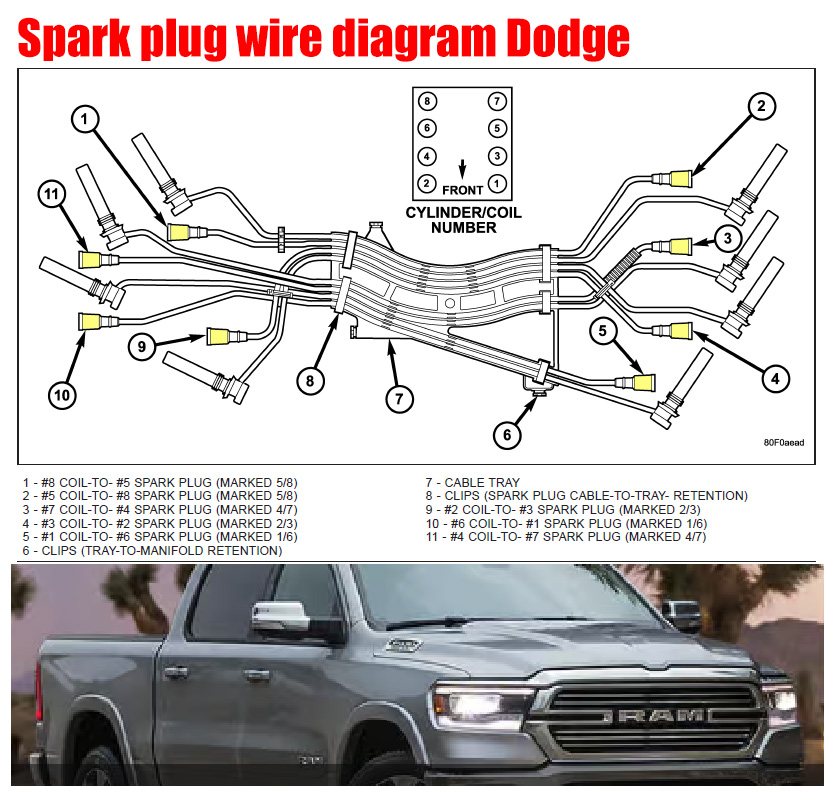

Spark Plug Wire Diagram for Dodge vehicles illustrates the arrangement of wires that connect the distributor or ignition coil to the spark plugs. These wires play a crucial role in delivering the high-voltage electrical pulse needed to ignite the air-fuel mixture in the engine’s cylinders, ensuring efficient combustion and smooth operation. Dodge’s specific wiring configurations … Читать далее

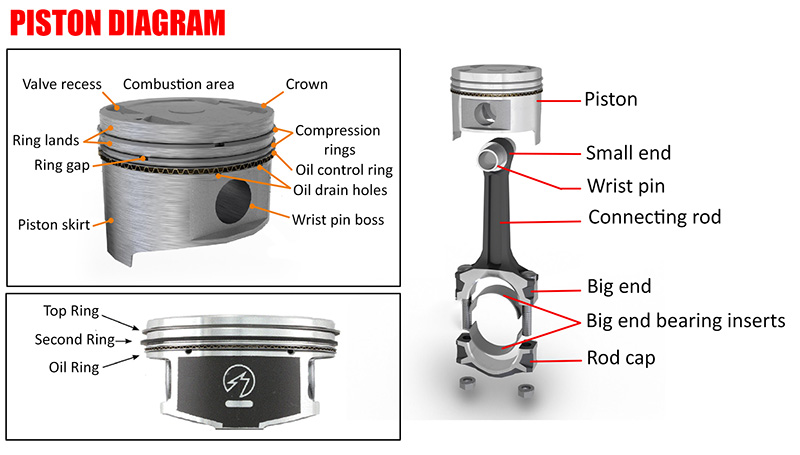

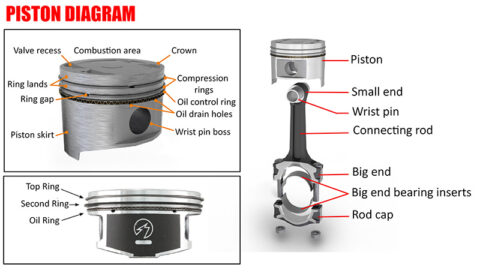

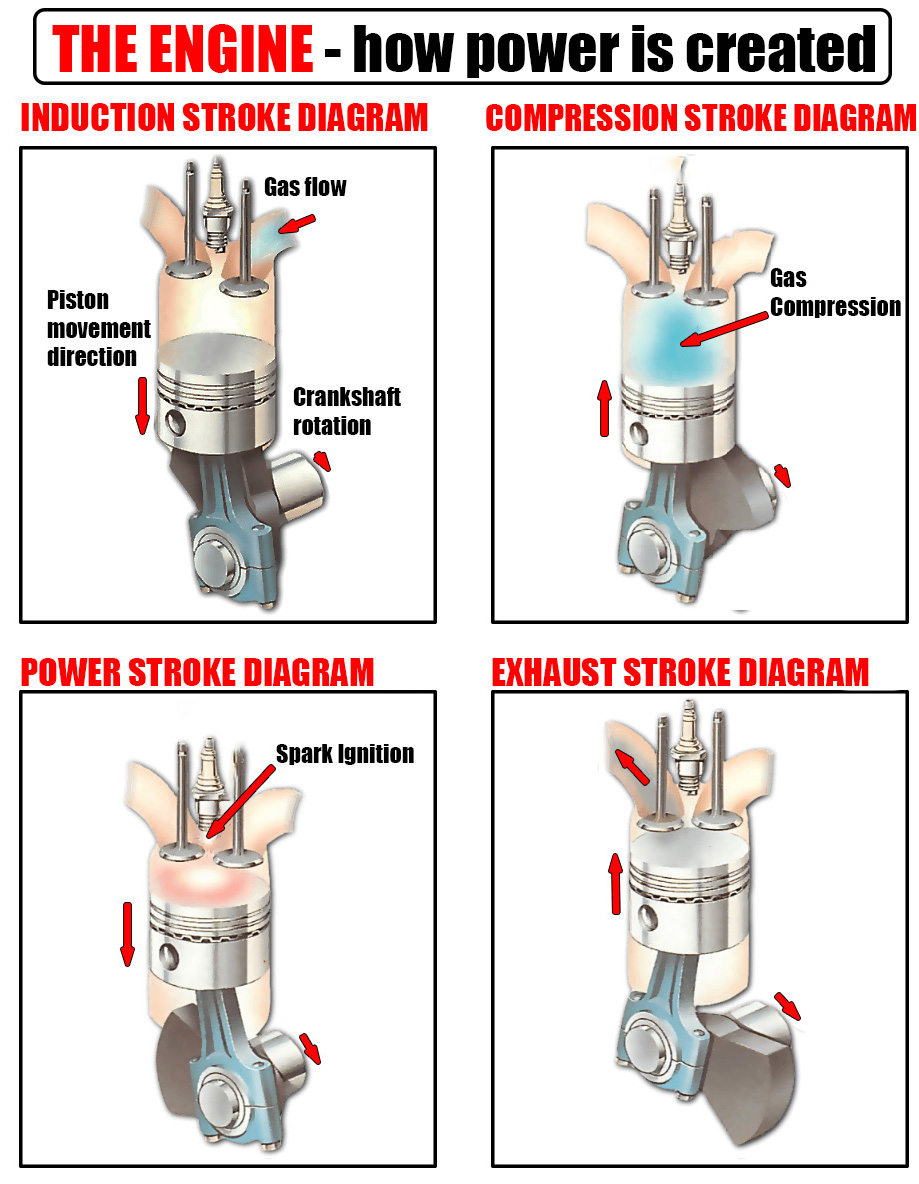

Piston Diagram

«The piston diagram, a blueprint of precision engineering, unveils the heart of internal combustion engines. This detail moves of up and down strokes, conversions the fuel’s potential into mechanical power.»

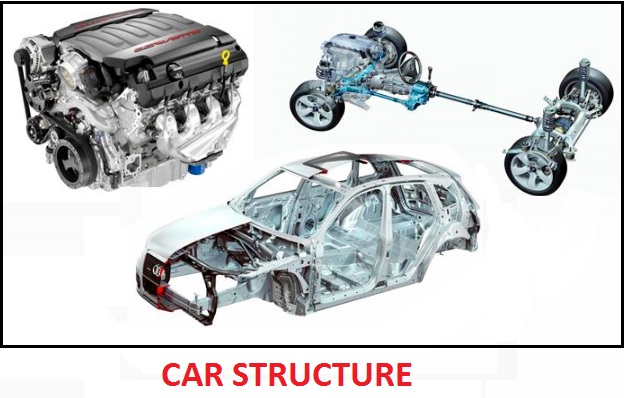

Car Chassis Diagram

The car chassis diagram shows the anatomy of one of the most essential parts of an automobile, encompassing various key elements and serving several critical functions. Top major elements of car chassis: Functions of the Chassis The chassis serves several important functions: The chassis diagram shows the chassis’s important role in supporting the entire car … Читать далее

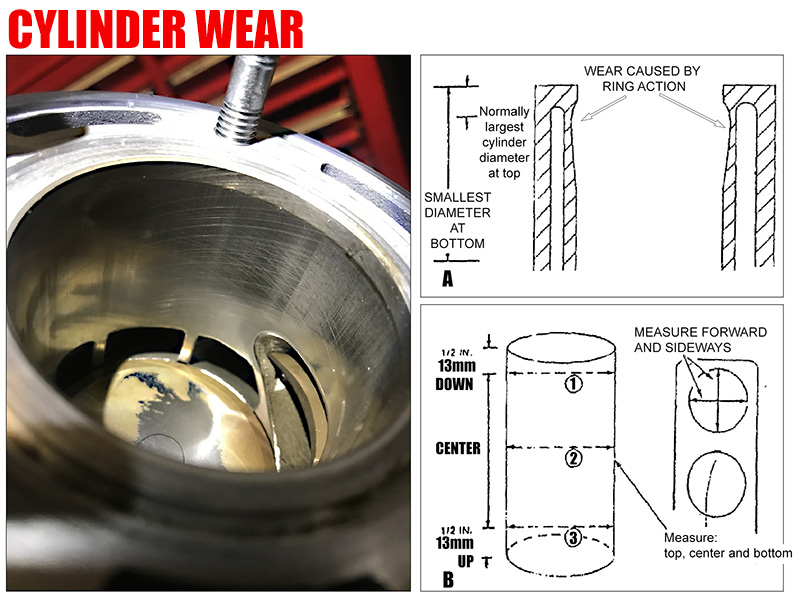

Cylinder Wear

Cylinder wear is a process that leads to the deformation of cylinder walls into an elliptical shape. Such deformation appears as a result of friction between a pair of piston-cylinder. There are all causes of cylinder-bore wear. Cylinder wear significantly hampers engine performance, as it prevents the circular piston rings from effectively sealing against the … Читать далее

Voice-Activated Control: The Future of Automotive Technology

Advantages of Voice-Activated Control Voice-activated control is an innovative technology that allows drivers to use voice commands to control various functions in their vehicles. This cutting-edge feature offers many advantages for drivers. One of the main advantages is its ease of use. With voice commands, drivers can access a wide range of features without ever … Читать далее

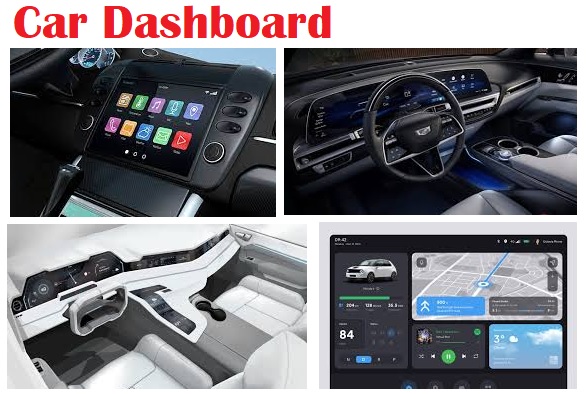

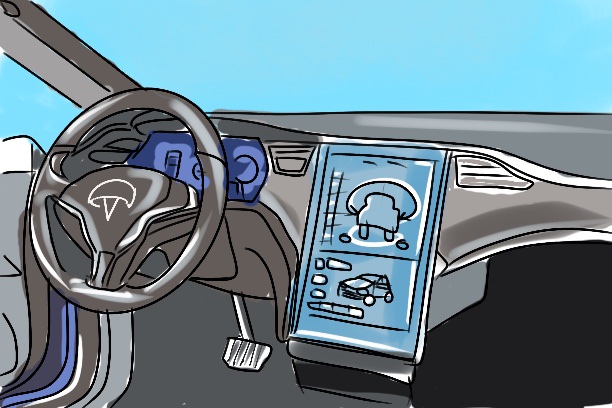

Types of dashboard

Car dashboards come in a variety of styles and designs to suit the needs and preferences of different drivers. Traditional dashboards feature analog gauges and dials for speed, RPM, fuel, and other important information. Digital dashboards, on the other hand, have replaced analog gauges with high-resolution screens that display customizable information in real-time. These dashboards … Читать далее

Cardan Diagram

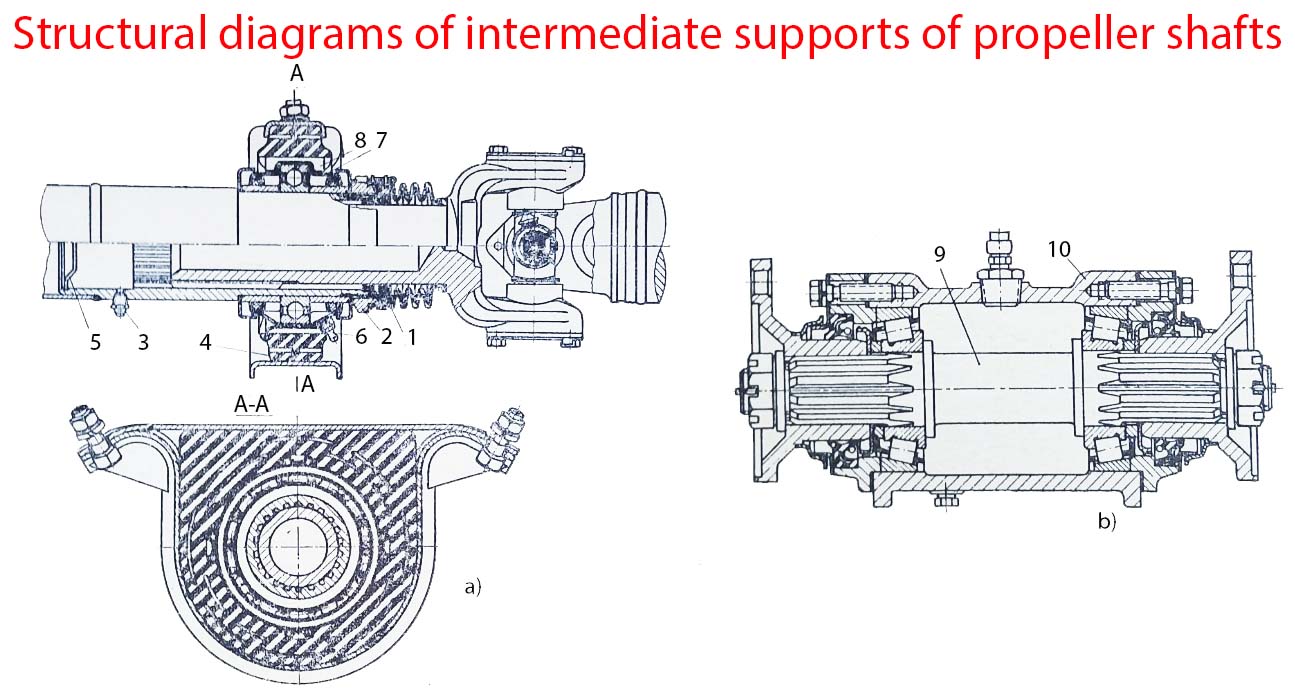

Cardan consists of different elements: universal-joint forks, cardan bearings, movable spline connection, cardan cross, intermediate support and others. Universal-joint forks Universal-joint forks with unequal angular velocity is made together with the flange 2 for mounting the cardan flange 3. The needle bearing bush is inserted into the universal-joint fork lug 1. Sometimes, the needle bearing … Читать далее

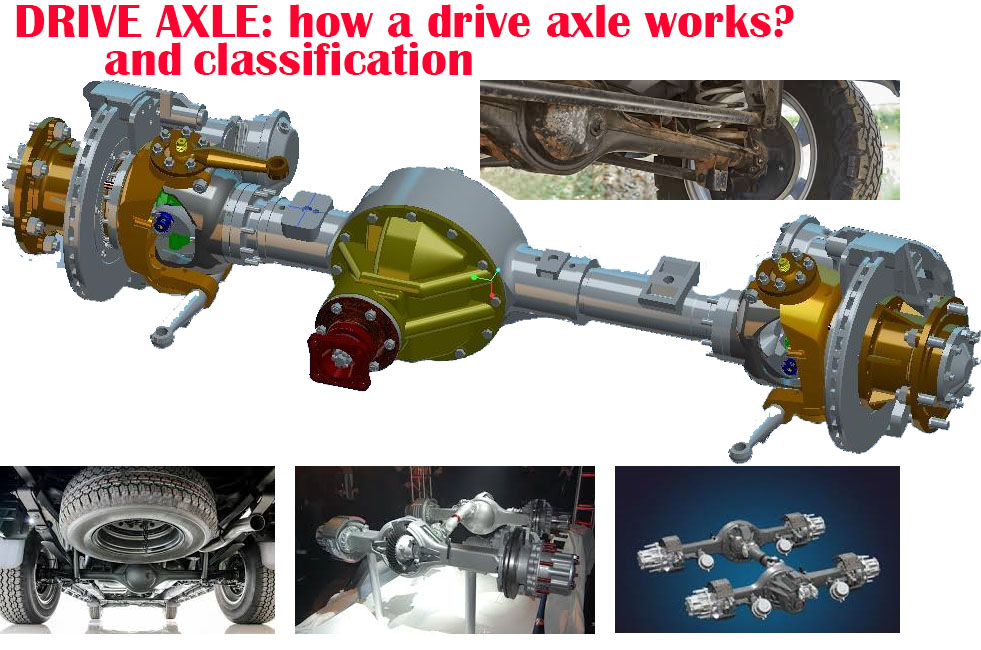

Drive axle: how a drive axle works, classification and requirement

The drive axle transmits the torque from the propeller shaft to the driving wheels of the vehicle. In addition, it absorbs the vertical, longitudinal and transverse forces acting between the supporting surface and the frame or body of the vehicle. The elastic suspension elements transmits the vertical (pushing and braking) and horizontal forces (during skidding) … Читать далее

Vehicle classification

Types and classification of vehicles Cars are classified according to the following criteria: type of vehicle; mainly technical parameter (mass, power or overall dimensions); body type; purpose; wheel formula; engine’s type. Automobile rolling stock is divided into types of cars: passenger (cars, buses, passenger trailers and semi-trailers) freight passenger (cars, buses, passenger trailers and semi-trailers). … Читать далее

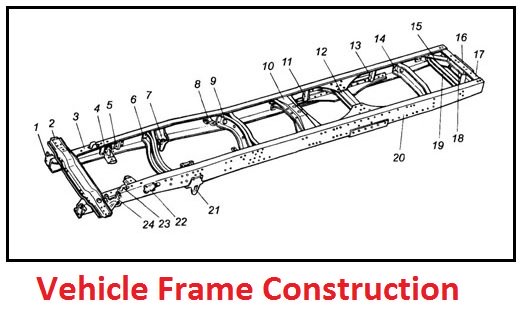

Vehicle Frame Components

Vehicle frame — is a rigid structure (also known as its chassis) , which is formed by two longitudinal spars connected by cross members. The frame of the truck acts as a supporting structure. Distinguish between spar and spinal frames. Car Frame Components 1 — front buffer mounting bracket; 2 — the first cross member; 3 … Читать далее

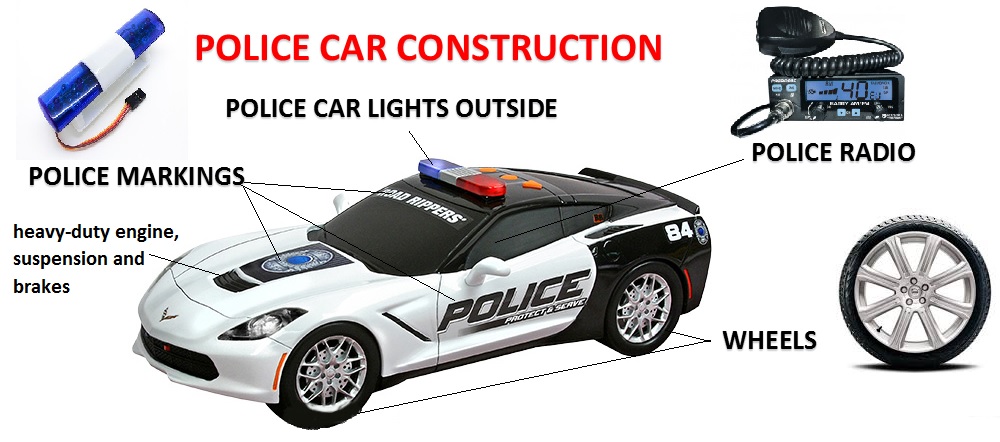

Emergency vehicles construction: police car construction

Police car construction

Police cars are mainly passenger cars, converted to the requirements of law. Law enforcement units can modify them to fit their needs by adding the necessary equipment. Police cars have got reinforce the suspension, brakes, engine. There are various adjustments to the controls on police car. Police vehicle construction possesses more modern equipments. Interesting story … Читать далее

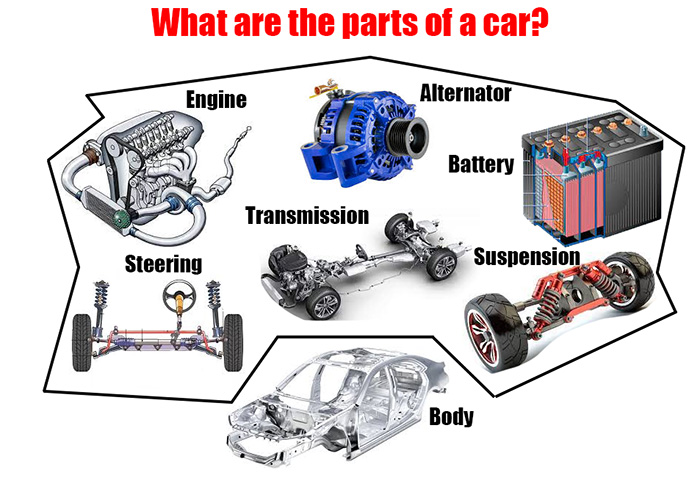

What is a car?

self-propelled machine

Car is self-propelled machine (from word «self-propel»). A modern motor car consists of several thousand various units, details and parts. Dear friends, can you imagine an ordinary supermarket trolley?  Is it real, that it`s moving itself? Of course, it is not true. Because the man pushes a supermarket trolley with help special handle. A self-propelled … Читать далее

Car Construction for Kids

Car construction for Kids

This site offers science, technology, engineering and automobile construction for your kids. build problem solving skills. discover how things work exploring car construction and engineering as a career option learn vehicle construction while having fun engege in real world automobile engineering problems «The Vehicle construction for Kids», we bring the fun Vehicle construction study to … Читать далее
